Pneumatic

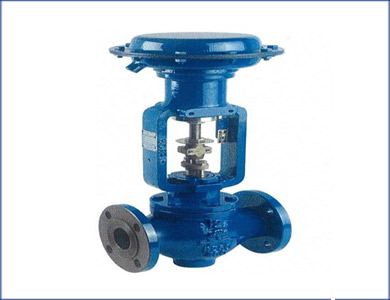

Diaphgram Control Valves( Series 400)
Technical Specification

Dipahgram-Control-Valve-With-Positioner-In-Chennai

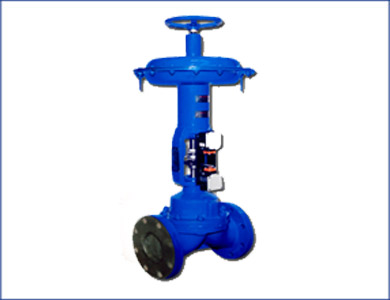

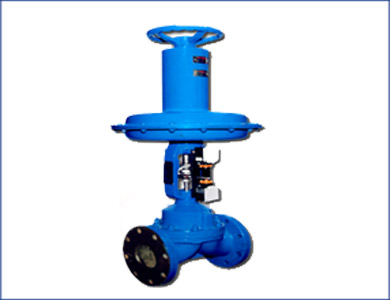

Dipahgram Operated Valve

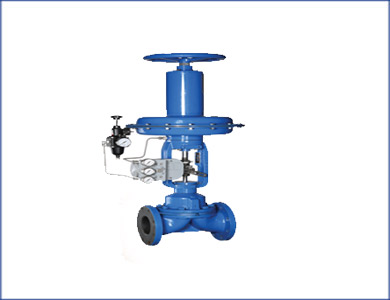

Dipahgram Control Valve with Positioner

Our Dealerships

About Us

Galaxy Trading Corporation take great pleasure to introduce our self as one of the leading traders, stockiest, distributors and suppliers of all kind Metal Pipes, Pipe Fittings, Industrial Pipes, Industrial Gauges, V Belts, Industrial Valves, Metal Fasteners, Gunmetal Chains, Chain Sprockets, Asbestos Packing Material and many more. Offered products...Read More

QR Code

Our Dealerships

Contact Address

4-2-78, S No G-19F, Old Bhoiguda, Rani Gunj, Secunderabad, Telangana 500003.
095814 91907
07032595786
sales@galaxytradingcorporation.com

Scroll

1	Design	Complies to BS:51 56
2	Body Type	Weir
3	Value Size	15mm to 200mm(1/2" to 8")
4	End Connection	125 ANSI
5	Flow Char	On- Off/Throtting
6	Body Material	Cast Iron, Carbon Steel(Other On Request)
7	Lining Material	Ebonite, Neoprene, Teflon, EPDM, FRP, Glass etc
8	Lining Thickness	15 to 65mm valve- 3mm, 80 & 100mm valve-3.5mm, 125 & 150mm valve -4.0mm, 200mm valve-5mm teflon cating thickness- 800 microns, Gas lining -1.5mm
9	Body Diaphgram	Neoprene, Teflon Backed with Neoprene, Butyl, Nitrile, Hypalon, Viton, EPDM
10	Acutator Type	Diaphgram, Piston or Electrical
11	Acutator Action	Dierct/ Reverse acting
